Looking for a small sand pump that can handle sand, mud, and sediment without breaking down every few weeks? You’re in the right place.
This guide covers everything you need to know. We’ll explain how these pumps work, what makes them last, and how to pick the right one for your project. No fluff. Just the facts.
Quick Answer: A small sand pump is a compact centrifugal slurry pump built to move sand, mud, and sediment from rivers, ponds, mines, and job sites. It uses high chrome alloy parts to resist abrasion and handle solid particles without wearing out fast.
Key Takeaways
| Feature | What You Should Know |
|---|---|
| Pump Type | Centrifugal slurry pump, often submersible |
| Main Use | Sand, mud, and sediment transfer |
| Top Buying Factor | Abrasion resistance (high chrome alloy parts) |
| Flow Rate Range | Usually measured in m³/h or GPM |
| Drive Options | Electric, diesel, or hydraulic |
| Common Industries | Mining, dredging, construction, wastewater |
| Lifespan Boost | Up to 60% longer with wear-resistant materials |

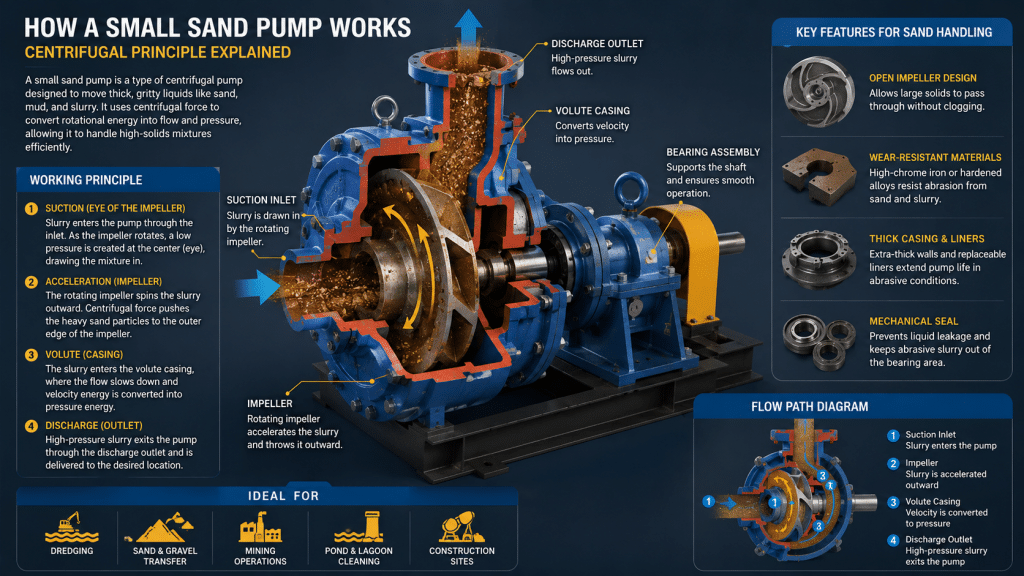

1. What Is a Small Sand Pump and How Does It Work?
A small sand pump is a type of centrifugal pump. It’s built to move thick, gritty liquids like sand, mud, and slurry. Standard pumps wear out fast when sand gets inside them. Sand pumps don’t have that problem. They’re made for it.
Here’s how it works, step by step:
- The pump and motor sit together in a submerged unit.
- A stirring impeller spins at the bottom. This loosens settled sand and mud, creating turbulent flow.
- The main impeller then pulls this mixture in and pushes it out through the discharge pipe.
That’s the whole process. Simple design. Tough materials. Reliable results.

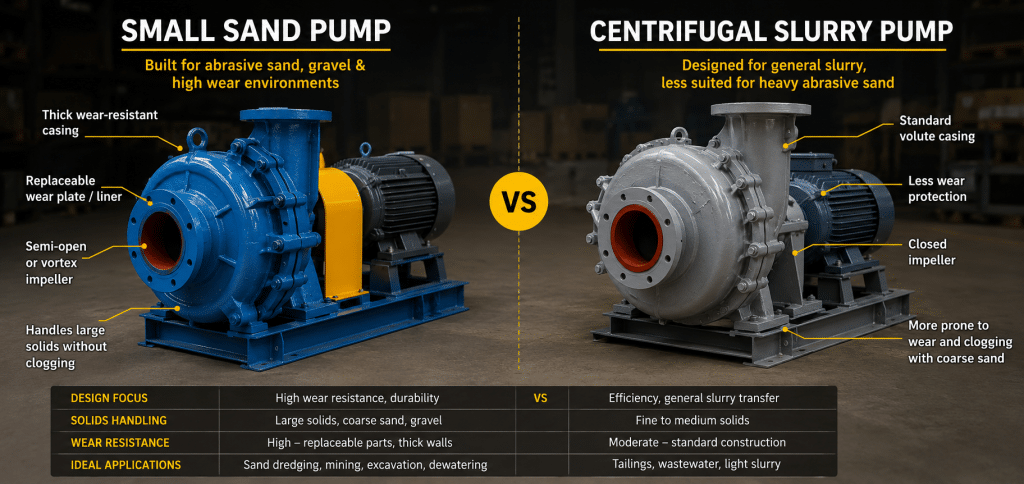

Is a Small Sand Pump the Same as a Slurry Pump?
Not exactly. But they’re closely related.
A small sand pump is actually a specific type of centrifugal slurry pump. The difference comes down to design and use case.
A standard heavy-duty slurry pump is usually built for industrial plant waste or thick mining tailings. A dedicated sand or gravel pump, on the other hand, has wider internal passages. This lets it move sand, mud, and river sediment with up to 60% solid concentration without clogging.
So think of it this way: all small sand pumps are slurry pumps, but not all slurry pumps are built for sand.
2. Top Industries and Applications for Small Sand Pumps
Small sand pumps aren’t just for one job. They show up across many industries because abrasive materials are everywhere.
| Industry | Common Applications |
|---|---|
| Mining | Tailings transport, mineral processing, sand mining |
| Dredging | River dredging, lake and pond cleaning, lagoon maintenance |
| Construction | Dewatering, sediment removal, aggregate handling |
| Wastewater | Sludge handling, sewage treatment, pumping stations |
| Power Plants | Fly ash and coal slurry transport |
| Pool Filtration | Sand filter systems, debris removal |
Many buyers searching for “small sand pump” are actually looking for something more specific. Terms like small dredge pump, mini dredging pump, and sediment removal pump often point to the exact same equipment.
And here’s the thing: most people don’t need a massive dredging system. They need a compact, portable unit that can be moved between job sites. Something that fits on a small pontoon or trailer and gets the job done without a big crew.
If you’re working on a river clearing or sand mining project, check out our range of dredger pumps built specifically for these conditions.
3. Key Features to Check Before Buying a Small Sand Pump
Not all sand pumps are created equal. Before you buy, check these features first.
Abrasion Resistance
This is the #1 factor buyers care about. Sand is abrasive. It chews through weak materials fast. Look for pumps with high chrome alloy impellers, wear-resistant liners, and hardened steel parts. We’ll cover this in more detail in the next section.
Flow Rate vs. Horsepower
Here’s something many buyers get wrong. Horsepower matters less than you think. What really matters is flow rate, measured in cubic meters per hour (m³/h) or gallons per minute (GPM).
Why? Because flow rate tells you how much material the pump can actually move. A high-horsepower pump with low flow rate won’t help you finish the job faster.
Maximum Solids Handling Size
Every pump has a limit on particle size. If your project involves larger rocks or debris, you need a pump rated for that. Check this spec carefully before buying.
Temperature Range
Standard pumps handle normal temperatures fine. But if you’re working with hot fluids, look for versions rated up to 200°F (93°C). These are sometimes called Fahrenheit series pumps.
Drive Type
Not every job site has reliable electricity. That’s why many buyers, especially in remote areas across Africa, South America, and Southeast Asia, look for:
- Diesel engine-driven pumps
- Hydraulic-driven units
- Trailer-mounted portable systems
Interchangeable Parts
Last but not least: check if the pump uses interchangeable slurry pump parts. This matters more than people realize. When a wear part fails, you want a quick swap, not a custom order that takes weeks to arrive.

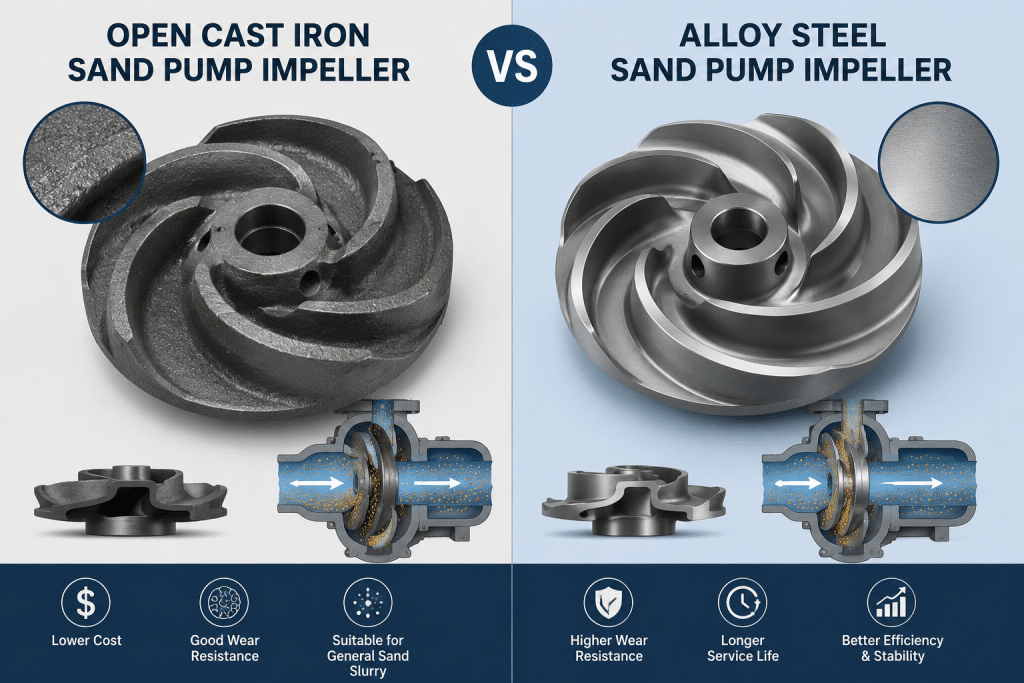

4. What Material Extends the Lifespan of a Heavy-Duty Slurry Pump?
Short answer: high chrome alloy.
Pumping sand is brutal on equipment. Every grain acts like sandpaper, slowly grinding away at metal surfaces. Over time, this wears down impellers and casings until the pump stops working efficiently.
That’s why the pump casing and impeller material matters so much.
The industry standard for heavy-duty slurry pumps is high chrome alloy (Cr27). This material is also used in premium slurry pump components across mining and dredging applications. According to engineering research on chromium cast iron, this alloy offers significantly better wear resistance than standard cast iron or steel.
What does this mean for you?
- Pumps built with Cr27 components last 3 to 5 times longer than standard water pumps in abrasive conditions.
- Maintenance frequency drops significantly.
- Downtime costs go down.
So when you’re comparing sand pumps, always ask: what material is the impeller and casing made from? If the answer isn’t high chrome alloy, expect shorter service life.

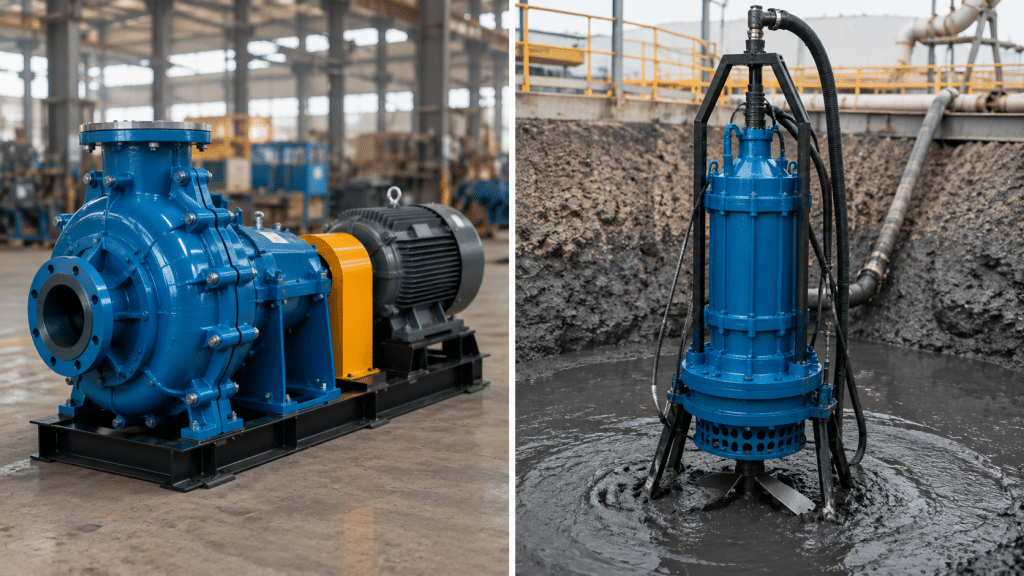

5. Horizontal Slurry Pump vs. Submersible Sand Pump: Which Do You Need?
This is one of the most common questions buyers ask. The answer depends entirely on your setup.
Horizontal Slurry Pump
A horizontal slurry pump usually sits on a skid or pontoon, often paired with a diesel engine. This setup works well for:
- Mobile dredging operations
- Mini suction dredgers
- Surface-based pumping where access is easy
Submersible Slurry Pump with Agitator
A submersible pump sits directly inside the slurry. It works best for:
- Deep pits and sumps
- Confined spaces
- Tailings ponds with settled solids
The agitator is key here. It fluidizes settled sand and mud, making it easier for the pump to draw material in. Without an agitator, a submersible pump can struggle with compacted material.
| Factor | Horizontal Slurry Pump | Submersible Sand Pump |
|---|---|---|
| Best for | Mobile, surface dredging | Deep pits, confined sumps |
| Setup | Skid or pontoon mounted | Fully submerged |
| Maintenance access | Easy | Requires lifting equipment |
| Handles compacted solids | Limited | Yes, with agitator |
Still not sure which configuration fits your project? Browse our dredger pump lineup to compare specs side by side.
6. Small Sand Pump Flow Rate and Solids Handling Specifications
Let’s talk numbers. When comparing pumps, focus on these four specs:
- Flow rate (m³/h or GPM): How much material moves per hour
- Maximum solids size: The largest particle the pump can handle
- Solids concentration: How much sand or mud the slurry contains, by percentage
- Suction depth: How deep the pump can pull material from
Here’s a simple breakdown for small sand pumps:
| Pump Size | Typical Flow Rate | Max Particle Size |
|---|---|---|
| Small (2″–3″) | 20–60 m³/h | Up to 30 mm |
| Medium (4″–6″) | 60–200 m³/h | Up to 50 mm |
| Large (8″+) | 200+ m³/h | 50 mm and above |
For a deeper technical breakdown of how flow rate and head relate to centrifugal pump performance, the Engineering ToolBox pump reference is a solid resource.
One more tip: don’t just match flow rate to your project size. Also check suction depth. A pump with great flow rate but poor suction depth won’t help if your sand sits at the bottom of a deep pond.

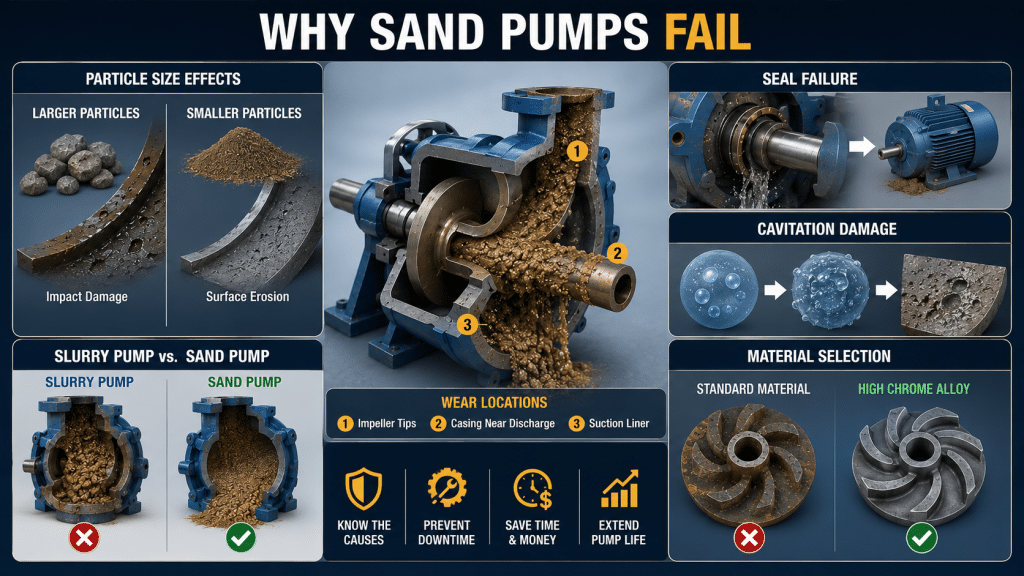

7. Why Do Sand Pumps Fail? (Common Failure Points Explained)
This section matters more than most people realize. Understanding why pumps fail helps you avoid costly downtime.
Wear Location Analysis
Most wear happens at three points: the impeller tips, the casing near the discharge, and the suction liner. These areas take the most direct hit from moving particles.
Particle Size Effects
Larger particles cause more impact damage. Smaller particles, especially fine sand, cause more surface erosion over time. Both wear down pump components, just in different ways.
Seal Failure
Seals keep slurry from leaking into the motor housing. When seals fail, water and grit get where they shouldn’t. This often leads to motor damage, which is far more expensive to fix than a seal replacement.
Cavitation Damage
Cavitation happens when pressure drops too low inside the pump, causing tiny vapor bubbles to form and then collapse violently. Over time, this pitting damages metal surfaces. Learn more about how this process works from this overview of cavitation.
Slurry Pump vs. Sand Pump Clogging
Slurry pumps designed for thick industrial waste sometimes clog when handling sand, because sand settles and compacts differently than other slurries. Sand-specific pumps have wider passages to prevent this.
Material Selection
As covered earlier, material choice is the biggest factor in failure prevention. High chrome alloy components simply last longer under abrasive conditions. Choosing the wrong material is often the root cause behind early pump failure.
8. Maintenance Tips to Extend Your Sand Pump’s Lifespan
Good maintenance habits can double or triple the life of your pump. Here’s what to do:
- Inspect impellers regularly. Even high chrome alloy parts wear down eventually. Catch it early.
- Check seals often. A small leak today becomes a motor problem tomorrow.
- Clean sedimentation tanks. Especially important for wastewater applications.
- Monitor temperature. Stay within rated limits to avoid premature wear.
- Keep spare wear parts on hand. Since interchangeable slurry pump parts make replacements quick, having spares on-site minimizes downtime.
A few minutes of inspection each week can save you days of downtime later.
9. Common Mistakes When Choosing or Using a Small Sand Pump
Avoid these mistakes, and you’ll save yourself a lot of headaches:
- Ignoring particle size. Choosing a pump that can’t handle your largest particles leads to clogging and damage.
- Using a standard pump for abrasive material. Standard pumps weren’t built for sand. They’ll fail fast.
- Focusing on horsepower instead of flow rate. More power doesn’t always mean more output.
- Skipping material specs. Always confirm impeller and casing material before buying.
- Overlooking drive type for remote sites. An electric-only pump is useless without power access.
- Exceeding temperature limits. This shortens pump life dramatically.
10. Sand Pump Buying Considerations: Complete Systems & Price Factors
Here’s something many first-time buyers don’t expect: a sand pump rarely comes alone.
Most projects need a complete system, including:
- The sand pump itself
- Suction hose
- Discharge hose
- Floating pontoon (for water-based projects)
- Cutter head (for compacted or dense material)
This is especially true for small dredging packages, where everything works together as one unit.
So what affects price? Several factors:
- Material quality: High chrome alloy components cost more upfront but save money long-term.
- Drive type: Diesel-driven units typically cost more than electric versions.
- Size and flow rate: Larger pumps with higher flow rates cost more.
- Configuration: Submersible units with agitators are priced differently than horizontal setups.
- Application-specific design: Oilfield, mining, and dredging versions vary in price based on customization needs.
Since pricing depends heavily on your specific setup, it’s best to request a quote based on your project requirements.
Need Help Choosing the Right Sand Pump?
Our team can help you match the right pump, drive type, and configuration to your project. View our dredger pump range to get started.
11. Market Trends: Why Demand for Small Sand Pumps and Slurry Pumps Is Growing
The numbers tell an interesting story.
The global pump market is growing steadily, driven largely by water, wastewater, and mining applications. According to Grand View Research, water and wastewater applications make up a major share of the overall pump market, and this segment continues to expand.
Submersible pumps, in particular, are growing faster than surface pumps. This matches what we’re seeing in the field: more buyers want compact, submersible units that can be dropped into ponds, pits, and tailings areas without complex surface setups.
Asia Pacific remains both the largest and fastest-growing region for pump demand, driven by ongoing infrastructure, mining, and land reclamation projects.
What does this mean for buyers? Simply put: demand for reliable, abrasion-resistant small sand pumps isn’t slowing down. If anything, it’s accelerating.
Frequently Asked Questions
Is a small sand pump the same as a slurry pump?
A small sand pump is a specific type of centrifugal slurry pump. It’s designed with wider passages to handle sand and sediment, while general slurry pumps handle thicker industrial waste.
What size sand pump do I need?
It depends on your flow rate needs and maximum particle size. Match the pump’s flow rate (m³/h or GPM) to the volume of material you need to move, and check that it can handle your largest particles.
How long does a small sand pump last?
With high chrome alloy impellers and casings, sand pumps can last 3 to 5 times longer than standard pumps in abrasive conditions, with up to 60% longer wear life on key components.
Can sand pumps handle hot fluids?
Yes. Fahrenheit series pumps are designed to handle fluids up to 200°F (93°C). Standard versions have lower temperature limits.
What’s the difference between horizontal and submersible slurry pumps?
Horizontal pumps sit on a skid or pontoon and work well for mobile, surface-based dredging. Submersible pumps sit inside the slurry and work best for deep pits and confined spaces, especially with an agitator attached.
What can small sand pumps pump besides sand?
Besides sand, these pumps handle mud, sludge, fly ash, coal slime, mine tailings, and other abrasive solid-liquid mixtures.
How do I maintain a small sand pump?
Inspect impellers and seals regularly, monitor temperature limits, clean sedimentation tanks, and keep spare wear parts on hand for quick replacements.
What industries use small sand pumps most?
Mining, dredging, construction, and wastewater management are the top industries relying on small sand pumps for daily operations.
Conclusion
Choosing the right small sand pump comes down to three things: abrasion-resistant materials, the right flow rate for your project, and a configuration that matches your work site. Get those right, and your pump will run longer with less downtime.
